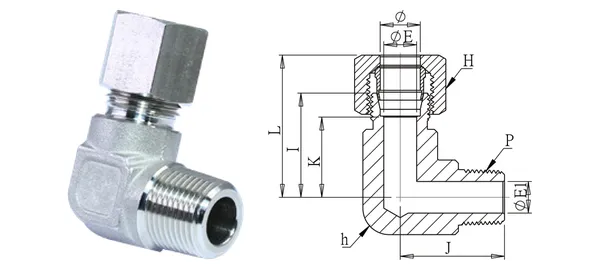

Product photo and dimension drawing (illustrative). Dimensions in mm.
Male Elbow (S series)
DG-CES-009
Specifications
| Part No. | DG-CES-009 |
|---|---|
| Description | Male Elbow (S series) |
| series | Compression Fittings |
| Tube OD (mm) | 16 |
| Thread P (PT) | 1/2” |
| ØE (mm) | 12 |
| ØE1 (mm) | 12 |
| I (mm) | 36.5 |
| J (mm) | 36.5 |
| K (mm) | 28 |
| L/L1 (mm) | 49.5 |
| Hex H (mm) | 30 |
| Hex h (mm) | 27.5 |
| Thread type | PT (standard) / NPT (-N) |
| Material | SUS304 (ferrule SUS316) |
| Working pressure | 250~400 kgf/cm² (S series) |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
