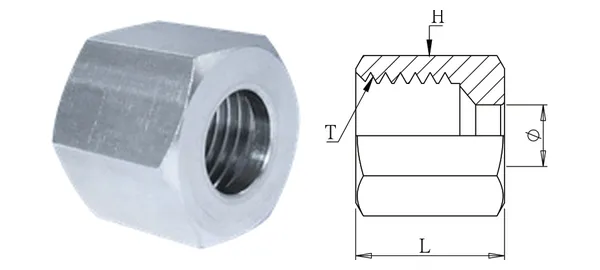

Product photo and dimension drawing (illustrative). Dimensions in mm.
Nut (S series)
DG-CNS-005
Specifications
| Part No. | DG-CNS-005 |
|---|---|
| Description | Nut (S series) |
| series | Compression Fittings |
| Tube OD (mm) | 16 |
| Thread T (Metric) | M24 x P1.5 |
| L/L1 (mm) | 21 |
| Hex H (mm) | 30 |
| Thread type | T: Metric M |
| Material | SUS304 (ferrule SUS316) |
| Working pressure | — |
| Working temperature | — |
| Remarks | Nut is machined from bar stock for better fatigue resistance and durability; no raised face — easy to distinguish from a compression nut. |
Data version 2026-10-01. Specifications subject to confirmation.
