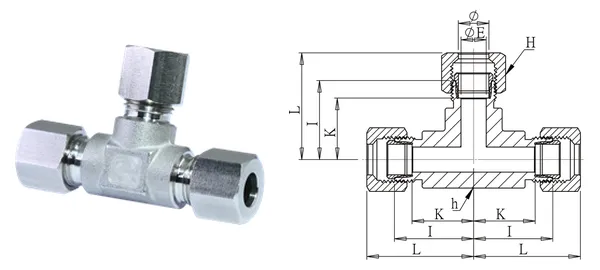

Product photo and dimension drawing (illustrative). Dimensions in mm.
Union Tee (S series)
DG-CTS-003
Specifications
| Part No. | DG-CTS-003 |
|---|---|
| Description | Union Tee (S series) |
| series | Compression Fittings |
| Tube OD (mm) | 10 |
| ØE (mm) | 7 |
| I (mm) | 26 |
| K (mm) | 18.5 |
| L/L1 (mm) | 37 |
| Hex H (mm) | 22 |
| Hex h (mm) | 18.6 |
| Thread type | — |
| Material | SUS304 (ferrule SUS316) |
| Working pressure | 250~400 kgf/cm² (S series) |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
