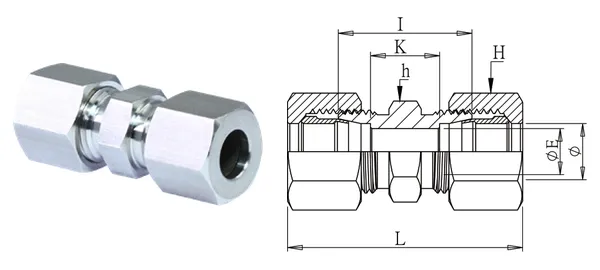

Product photo and dimension drawing (illustrative). Dimensions in mm.
Union (L series)
DG-CUL-008
Specifications
| Part No. | DG-CUL-008 |
|---|---|
| Description | Union (L series) |
| series | Compression Fittings |
| Tube OD (mm) | 28 |
| ØE (mm) | 24 |
| I (mm) | 39 |
| K (mm) | 24 |
| L/L1 (mm) | 70 |
| Hex H (mm) | 41 |
| Hex h (mm) | 38 |
| Thread type | — |
| Material | SUS304 (ferrule SUS316) |
| Working pressure | 100~250 kgf/cm² (L series) |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
