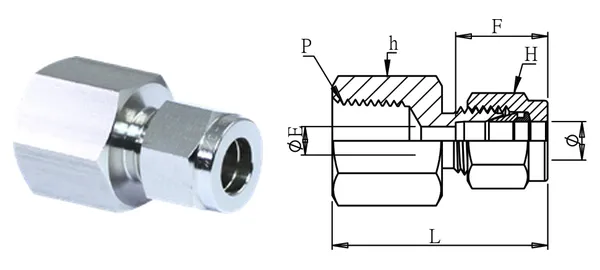

Product photo and dimension drawing (illustrative). Dimensions in mm.
Female Connector
DG-GSF-021
Specifications
| Part No. | DG-GSF-021 |
|---|---|
| Description | Female Connector |
| series | Tube Fittings |
| Tube OD (mm) | 16 |
| Thread P (PT) | 1/2" |
| ØE (mm) | 12.7 |
| F (mm) | 24.9 |
| L/L1 (mm) | 47.4 |
| Hex H (mm) | 27 |
| Hex h (mm) | 27 |
| Thread type | PT (standard) / NPT (-N) |
| Material | SUS316 (per catalog; order code -316) |
| Working pressure | 1/2"(12 mm) and below: 210 kgf/cm²; 3/4"(19 mm) and above: 100 kgf/cm² |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
