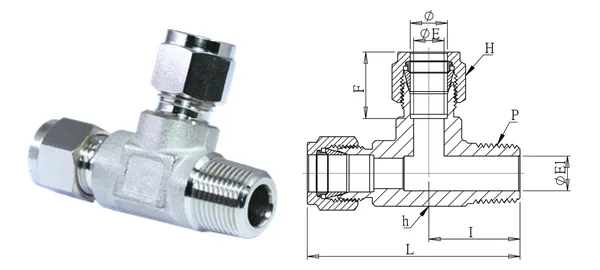

Product photo and dimension drawing (illustrative). Dimensions in mm.
Male Run Tee
DG-GTR-004
Specifications
| Part No. | DG-GTR-004 |
|---|---|
| Description | Male Run Tee |
| series | Tube Fittings |
| Tube OD (mm) | 12 |
| Thread P (PT) | 3/8" |
| ØE (mm) | 9.7 |
| ØE1 (mm) | 9.7 |
| F (mm) | 23 |
| I (mm) | 31.5 |
| L/L1 (mm) | 73.5 |
| Hex H (mm) | 22 |
| Hex h (mm) | 22.7 |
| Thread type | PT (standard) / NPT (-N) |
| Material | SUS316 (per catalog; order code -316) |
| Working pressure | 1/2"(12 mm) and below: 210 kgf/cm²; 3/4"(19 mm) and above: 100 kgf/cm² |
| Working temperature | — |
