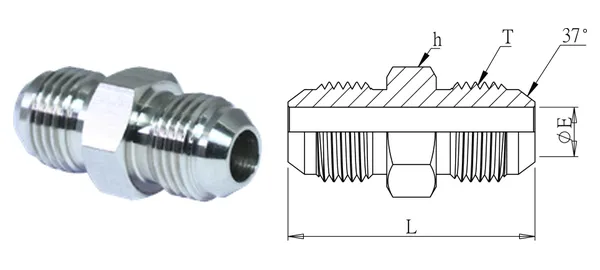

Product photo and dimension drawing (illustrative). Dimensions in mm.
Union (JIC 37°)
DG-HJU-006
Specifications
| Part No. | DG-HJU-006 |
|---|---|
| Description | Union (JIC 37°) |
| series | Hydraulic Fittings |
| Tube OD (mm) | 1" |
| Thread T (UN/UNF) | 1-5/16" x 12 |
| ØE (mm) | 21 |
| L (mm) | 53 |
| Hex h (mm) | 35 |
| Thread type | T: UN/UNF (JIC 37°) |
| Material | SUS304 (standard) / SUS316 (-316) |
| Working pressure | 210 kgf/cm² |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
