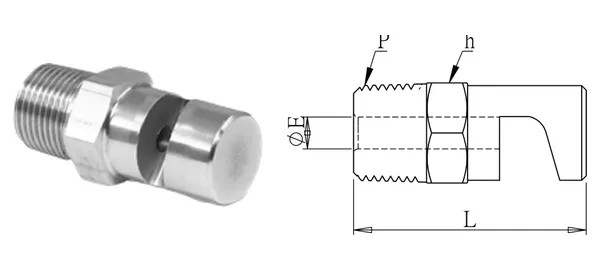

Product photo and dimension drawing (illustrative). Dimensions in mm.
Wide Angle Flat Fan Nozzle
DG-NWF-003
Specifications subject to confirmation
Specifications
| Part No. | DG-NWF-003 |
|---|---|
| Description | Wide Angle Flat Fan Nozzle |
| series | Nozzles |
| Thread P (PT) | 3/8" |
| Spray Angle | 150° |
| ØE (mm) | 5 |
| L (mm) | 45 |
| Hex h (mm) | 19 |
| Thread type | PT |
| Material | SUS303 (standard) / SUS316 (-316) / brass on requestSpecifications subject to confirmation |
| Working pressure | — |
| Working temperature | — |
| Remarks | Spray angle tested at 3 kgf/cm². |
Data version 2026-10-01. Specifications subject to confirmation.
