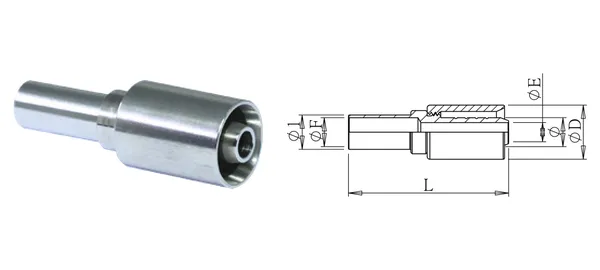

Product photo and dimension drawing (illustrative). Dimensions in mm.
PTFE Hose to Tube Stub
DG-KPS-004
Specifications
| Part No. | DG-KPS-004 |
|---|---|
| Description | PTFE Hose to Tube Stub |
| series | Crimp Hose Fittings |
| Tube OD (mm) | 1/2" |
| Hose ID (mm) | 1/2" |
| ØE (mm) | 7.1 |
| ØF (mm) | 10.7 |
| ØD (mm) | 20 |
| L (mm) | 59 |
| Thread type | — |
| Material | SUS304 (standard) / SUS316 (-316) |
| Working pressure | 210 kgf/cm² |
| Working temperature | — |
Data version 2026-10-01. Specifications subject to confirmation.
