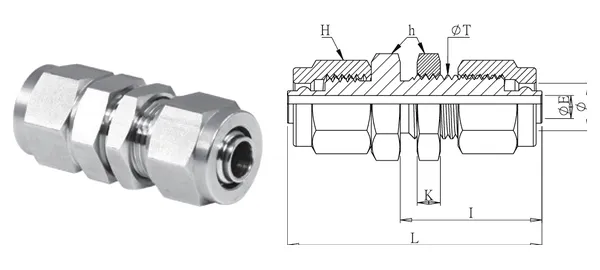

Product photo and dimension drawing (illustrative). Dimensions in mm.
Bulkhead Union
DG-RBH-005
Specifications
| Part No. | DG-RBH-005 |
|---|---|
| Description | Bulkhead Union |
| series | Rapid Pneumatic Fittings |
| Tube OD (mm) | 12 |
| Panel Hole (mm) | 16.3 |
| ØE (mm) | 7 |
| I (mm) | 27.5 |
| K (mm) | 6 |
| L (mm) | 50 |
| Hex H (mm) | 19 |
| Hex h (mm) | 19 |
| Material | Body SUS304 (standard) / SUS316 optional |
| Working pressure | 20 kgf/cm²* |
| Working temperature | -20℃~80℃* |
Data version 2026-10-01. Specifications subject to confirmation.
