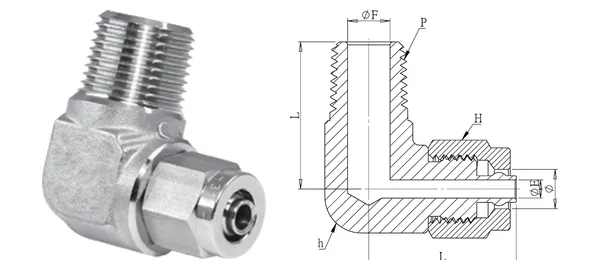

Product photo and dimension drawing (illustrative). Dimensions in mm.
Male Elbow
DG-REM-008
Specifications
| Part No. | DG-REM-008 |
|---|---|
| Description | Male Elbow |
| series | Rapid Pneumatic Fittings |
| Tube OD (mm) | 8 |
| Thread Size | 1/4" |
| ØE (mm) | 4 |
| ØF (mm) | 7 |
| L (mm) | 23.9 |
| Hex H (mm) | 14 |
| Hex h (mm) | 14.5 |
| Thread type | PT (standard) / NPT optional |
| Material | Body SUS304 (standard) / SUS316 optional |
| Working pressure | 20 kgf/cm²* |
| Working temperature | -20℃~80℃* |
Data version 2026-10-01. Specifications subject to confirmation.
