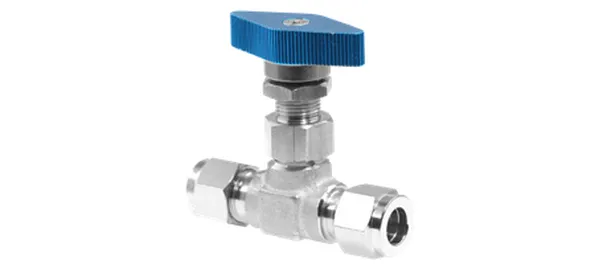

Product photo and dimension drawing (illustrative). Dimensions in mm.
Tube Needle Valve
DG-VNT-007
Specifications
| Part No. | DG-VNT-007 |
|---|---|
| Description | Tube Needle Valve |
| series | Valves |
| Tube OD (mm) | 1/2" |
| Panel Hole (mm) | 16.3 |
| ØE (mm) | 4 |
| I (mm) | 60 |
| J (mm) | 34 |
| K (mm) | 78.85 |
| L (mm) | 75 |
| Hex H (mm) | 22 |
| Hex h (mm) | 22.7 |
| Thread type | — (compression) |
| Material | SUS316 (per original catalog); Gasket PTFE |
| Working pressure | 3000 psi (210 kgf/cm²) |
| Working temperature | -25℃~180℃ |
Data version 2026-10-01. Specifications subject to confirmation.
