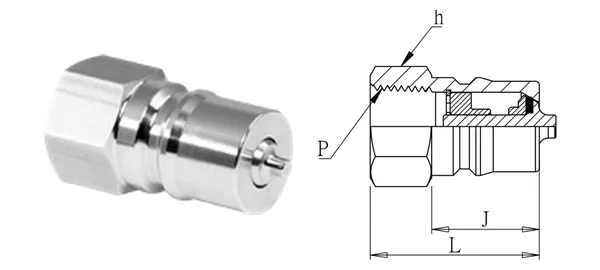

Product photo and dimension drawing (illustrative). Dimensions in mm.
Plug (Two-Way Shutoff)
DG-DGP-002
Specifications subject to confirmation
Specifications
| Part No. | DG-DGP-002 |
|---|---|
| Description | Plug (Two-Way Shutoff) |
| series | Two-Way Shutoff Quick Couplings |
| Thread P (PT) | 1/4" |
| J (mm) | 22 |
| L (mm) | 35.5 |
| Hex h (mm) | Hex 17 |
| Thread type | PT |
| Material | SUS304 (standard, Viton seal) / brass (NBR seal); SUS316 on requestSpecifications subject to confirmation |
| Working pressure | SUS304: 1/8"~3/8" 70, 1/2"~1" 45, 1-1/4"~1-1/2" 30, 2" 20 kgf/cm²; Brass: 50 / 30 / 20 / 15 kgf/cm² |
| Working temperature | — |
Detailed dimensions: request a drawing with your quotation.
Data version 2026-10-01. Specifications subject to confirmation.
