Quick Couplings
One-way, two-way shutoff, straight-through and camlock quick couplings plus accessories. 301 part numbers · 5 series.
One-Way Shutoff Quick Couplings
Pressure: 10 / 15 kgf/cm² (SUS304 (NBR), SUS316 (Viton), carbon steel (NBR), Nylon66+GF (NBR): 15; Nylon66 (NBR): 10) · Material: SUS304, 316, carbon steel, Nylon66, Nylon66+GF; seal NBR, Viton

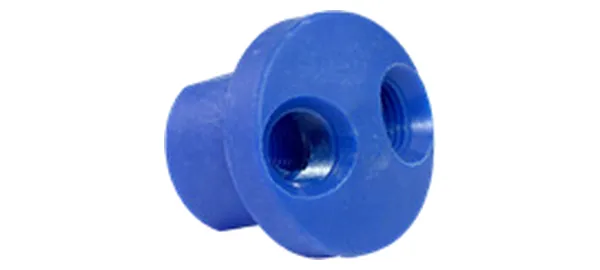

Accessories
Pressure: PU coiled tube 8 kgf/cm² (burst 24 kgf/cm²) · Material: Nylon66+GF, POM, PU

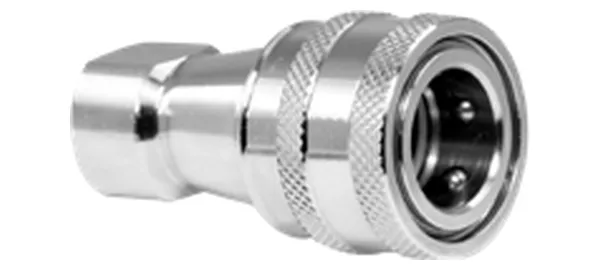

Two-Way Shutoff Quick Couplings
Pressure: SUS304: 1/8"~3/8" 70, 1/2"~1" 45, 1-1/4"~1-1/2" 30, 2" 20 kgf/cm²; Brass: 50, 30, 20, 15 kgf/cm² · Material: Body SUS304, brass; poppet SUS; seal Viton, NBR

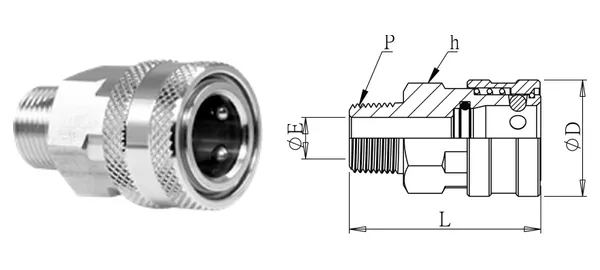

Straight Through Quick Couplings
Pressure: 1/4"~1/2": SUS 70 / Brass 50 kgf/cm²; 3/4"~1": SUS 45 / Brass 30 kgf/cm² · Material: SUS304, brass; seal NBR

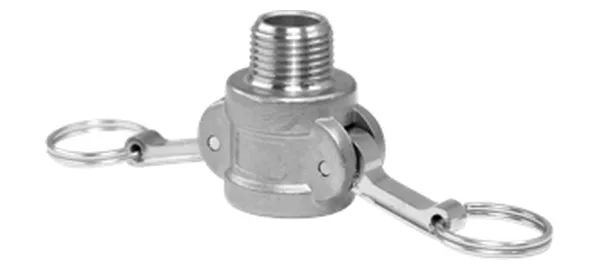

Camlock Quick Couplings
Pressure: SUS304/316, brass: 15 kgf/cm²; aluminium: 10 kgf/cm²; PP: 2~3 kgf/cm² · Material: SUS304, 316, aluminum, Brass, PP (this catalog lists stainless items); gasket NBR (PP mainly uses EPDM)
